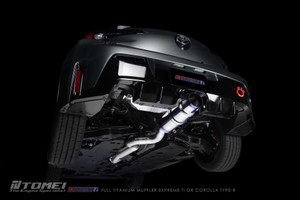

TOMEI FULL TITANIUM MUFFLER EXPREME Ti TYPE-D (DUAL) for the GR Corolla 2023+

GR Performance Parts an authorized Tomei dealer, is excited to announce the latest release for the GR Corolla. The Tomei Full Titanium Expreme Ti Type D (Dual Exit) exhaust!

Tomei Powered USA Inc., established in October 2006, is an automotive performance tuning parts manufacturer based in Lake Forest, California.  The company is 100% owned and operated by Axesta Inc., headquartered in Zama, Kanagawa Prefecture, in Japan.  At the Japanese headquarters, all product development and control of manufacturing for the TOMEI brand are carried out.

FULL TITANIUM MUFFLER SPECIFICATION

	TOMEI		OEM
	TYPE-R	TYPE-D
PART No.	TB6090-TY07A	TB6090-TY07B	-
MATERIAL	TITANIUM		-
MAIN PIPE DIAMETER	Φ80.5mm [3.17inch]	Φ80.5mm [3.17inch]	Φ70.0mm-Φ64.3ｍｍ [2.76inch-2.53inch]
MAIN PIPE THICKNESS	1.0mm
SUB SILENCER DIAMETER	Φ152.0mm [5.9inch]	Φ152.0mm [5.9inch]	Φ217.6mm [8.57inch]
SUB SILENCER THICKNESS	1.0mm
SILENCER DIAMETER	Φ119.0mm [4.69inch]	Φ119.0mm [4.69inch]	Φ120.3mm [4.74inch]
SILENCER THICKNESS	1.0mm
EXIT DIAMETER	Φ115.0mm [4.53inch]	Φ115.0mm [4.53inch]	Φ86.14mm*2 Φ164.3mm*1 [3.39inch*2 6.47inch*1]
EXIT THICKNESS	1.0mm
FLANGE THICKNESS	2.0mm		3.0mm
WEIGHT	6.5kg [14.4lbs]	9.95kg [22lbs]	14.75kg [32.6lbs]



SOUND LEVELS　Tested @4200rpm

Only muffler installed.

	TYPE-R	TYPE-D
with Sound Reducer Ver.2	82db	84db
with Sound Reducer	89db	90db
without Sound Reducer	93db	94db
