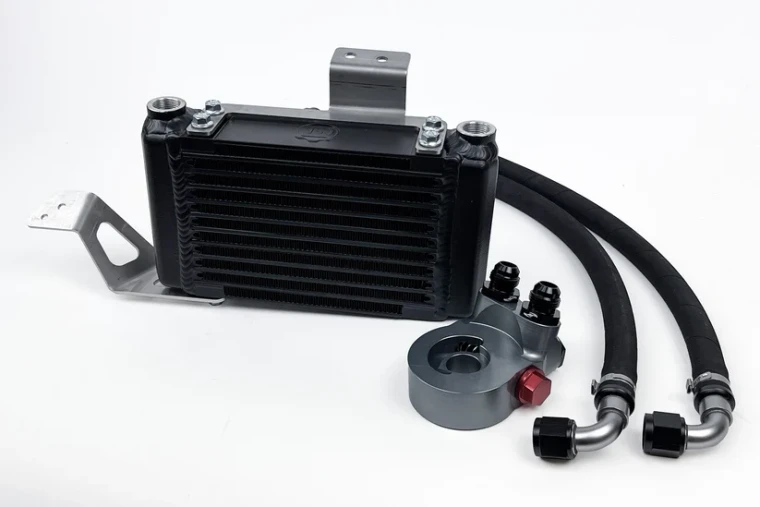

Jackson Racing Engine Oil Cooler Kit for the GR Corolla 2023+

An engine oil cooler is a must-have for any track or hot-climate vehicle. The GR Corolla can see oil temperatures spike to dangerous levels when running hard, which can accelerate oil breakdown and lower vehicle performance. Adding a Jackson Racing engine oil cooler kit to your GR Corolla will help keep temperatures in check, maintain performance, and extend engine oil life.

FEATURES:

• 10-Row CSF Racing Bar and Plate Core
  • Jackson Racing Spec’d CSF oil cooler core, with specific dimensions to maximize available area
  • CAD developed for proper fitment
  • Robust bar and plate design to help maximize heat rejection, while limiting pressure drop
  • 24% increase in heat transfer vs common 34-row units
  • Factory tested for quality assurance
  • Powder coated to resist corrosion and help with heat rejection
• Jackson Racing Engine Oil Cooler Bracket Set
  • Mounts using factory hole locations
  • CAD developed stainless steel mounting brackets – Made in the USA
  • No drilling/cutting
  • Locates cooler core with side airflow
  • Mounted driver side to maximize frontal area (compatible with JR Stepped Intercooler Kit)
• JR Thermostatic Oil Cooler Adapter
  • Integrated 92c Thermostat
  • Four M22 Ports with two -10AN fittings
  • Easy Install Socket Relief
  • Proper O-Ring design
  • Optional 1/8” NPT sensor port plugs
  • Titanium Grey Finish
  • Made in the USA
• -10AN Oil Cooler Lines
  • Pre-Assembled at Jackson Racing
  • OE Quality Aeroquip Oil Hose
  • Oetiker clamped hose ends for peace of mind
  • Direct M22 Free Float Fitting on cooler side
• The Jackson Racing Difference
  • 45 years of Proven Engineering and Performance
  • Tested by Champions
